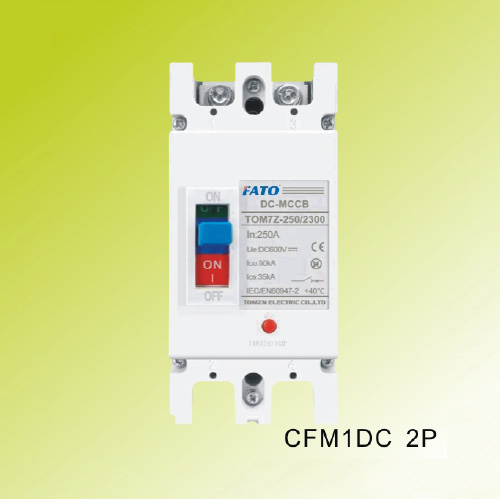

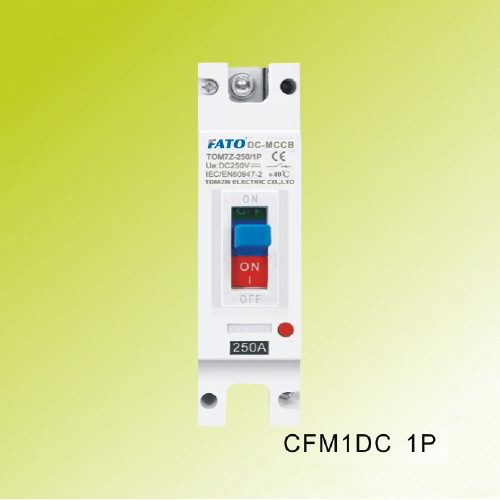

Through many years of dedicated research on the actual system operation situation and customer needs of new energy at htom e andabroad, UNITEElectric has developed the CFM1DC series of DC Molded Circuit Breaker for New Energy.

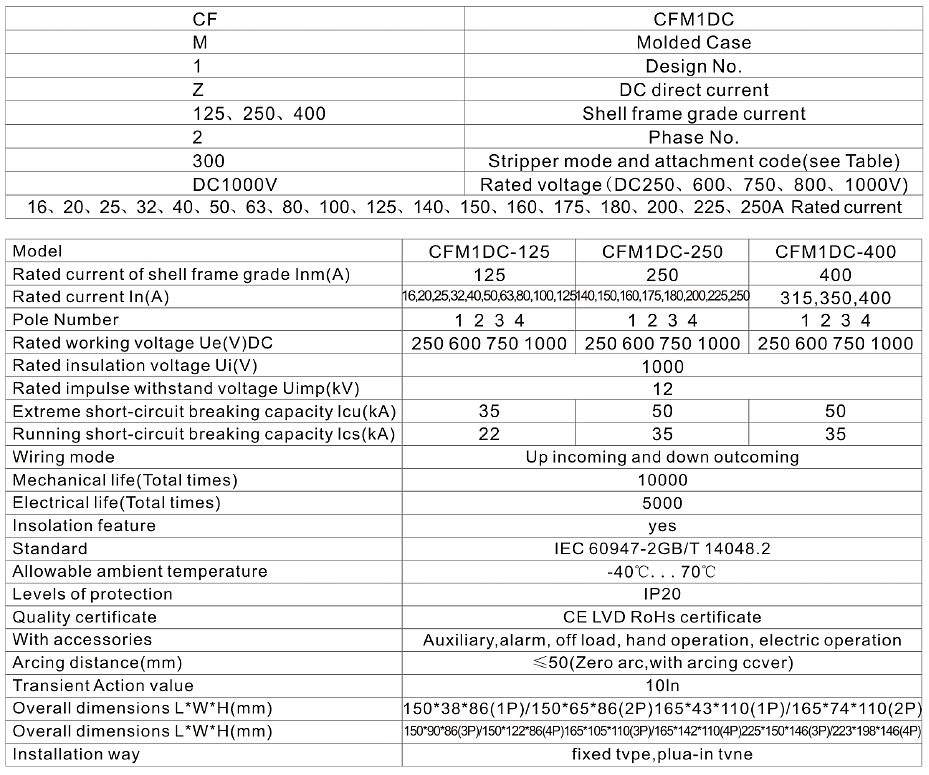

-for CFM1 series DC Molded Circuit Breaker, The maximum rated voltagel s DC1000V and the maximum current is 400A.
-for TOM7Z series Molded Circuit Breaker, in the voltage of DC1000V, the maximum breaking capacity is 50KA, which can ensure reliable short-circuit protection of the system.
CFM1 series DC molded case circuit breaker meet the following standards:
IEC60947-1GB/T14048.1General Provisions
IEC60947-2GB/T14048.2circuit breaker
1. The altitude is not higher than 2000m;
2. It is resistant to damp air(three-prooftype)
3. It is resistant to the influence of salt fog and oil fog(three-proof type);
4. It is resistant to the influence of mold(three-prooftype);
5. In a medium without explosion risk, and the medium is not enough to corrode the metal and destroy the insulation of the gas and conductive dust.
According to operation mode: According to the protection form:
1. Direct operation 1. Line protection
2. Electricoperator mechanism operation 2. Line isolation
3. Rotary handle operation
According to the wiring form:
1. Front-board wiring
2. Rear-panel wiring
3. Plug-in wiring
