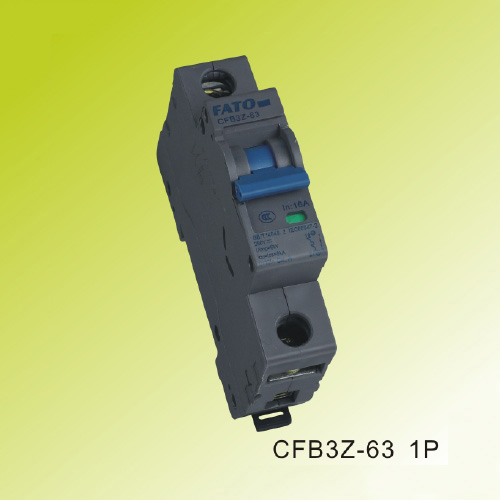

Application
CFB3Z series miniature circuit breakers is used in lighting distribution system or motor distribution system for protecting overload and short-circuit within the circuit of DC, rated voltage of single pole up to 1000V, rated current of single pole up to 63A. It can also be used for an unfrequent switch over of the circuit and illumination under normal conditions. It conforms to IEC60898-2. GB/T14048.2.

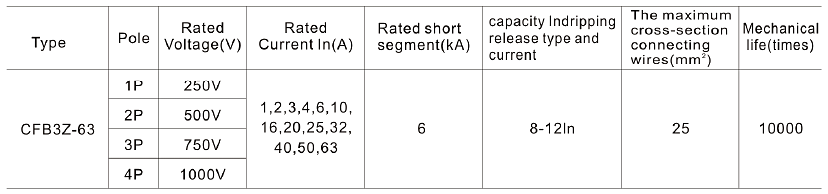

Specifications

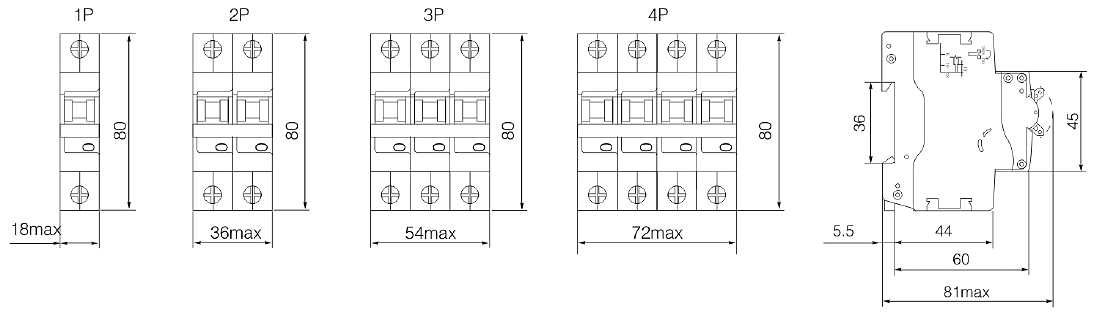

Dimensions
Certificates
